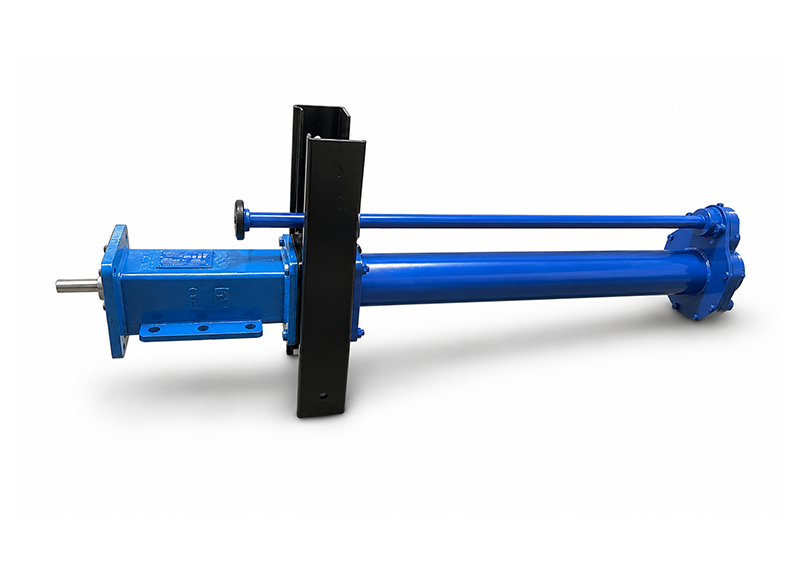

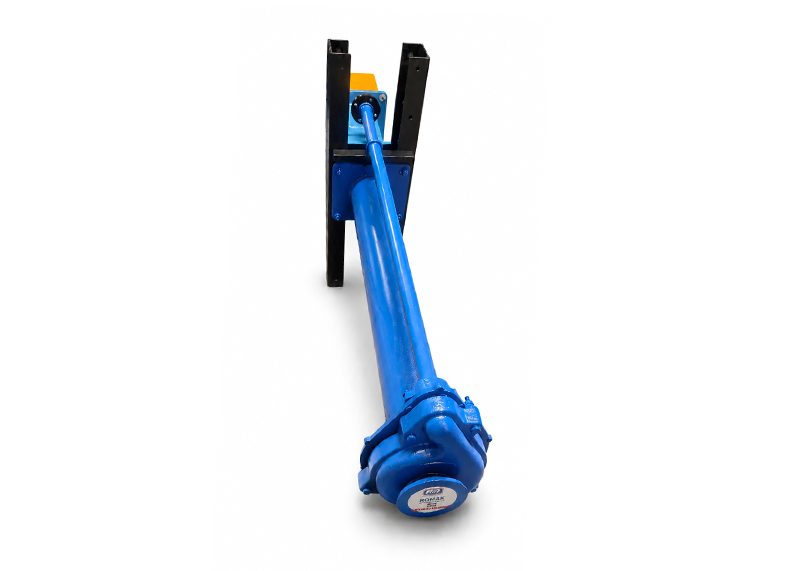

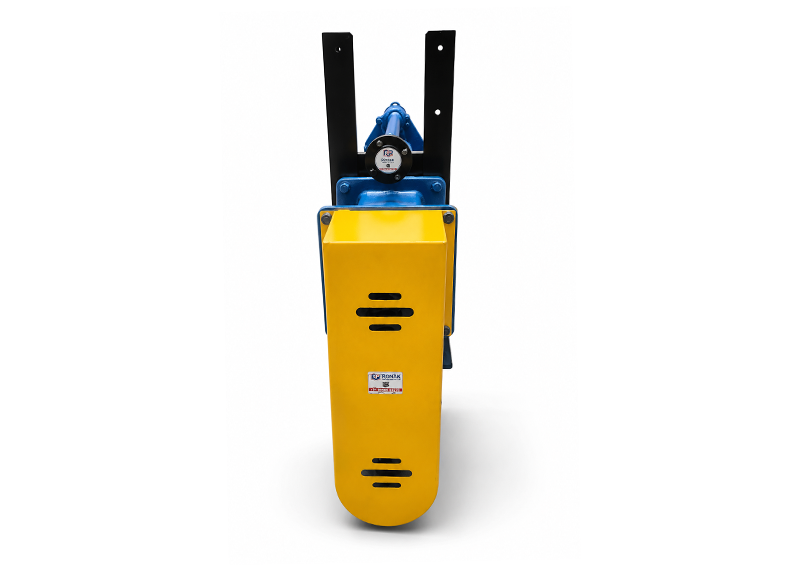

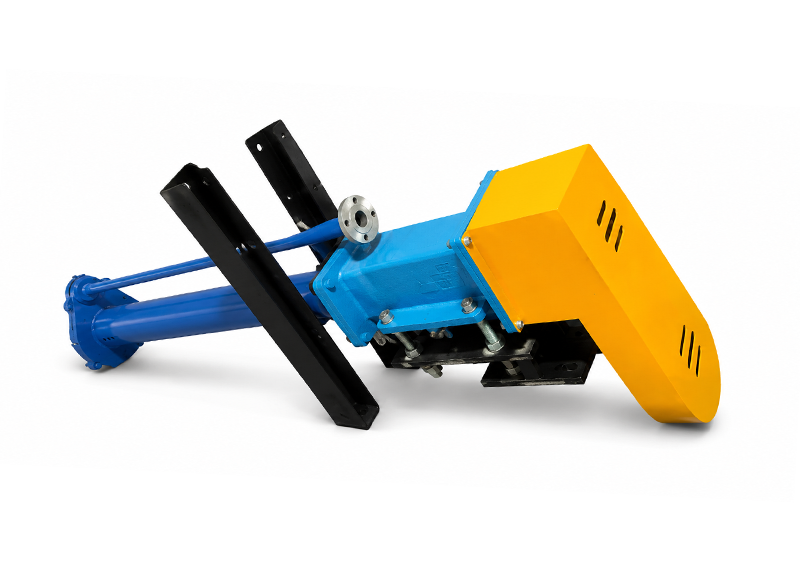

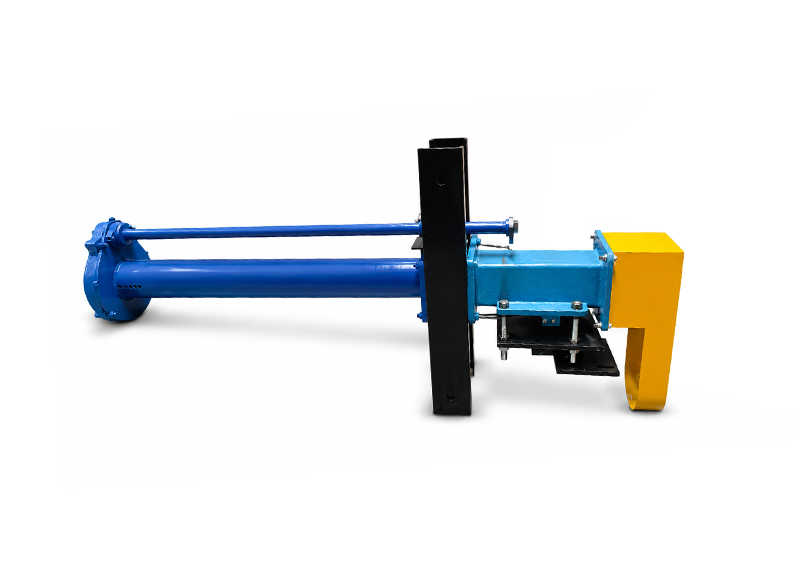

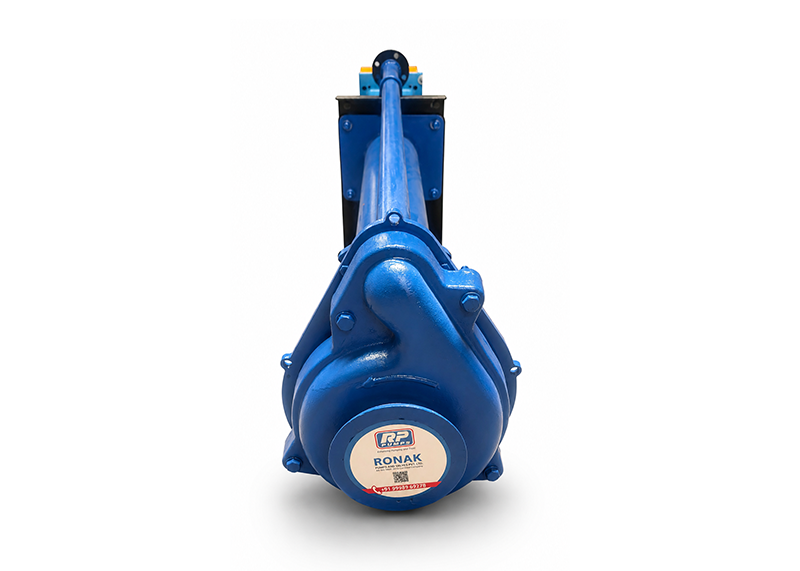

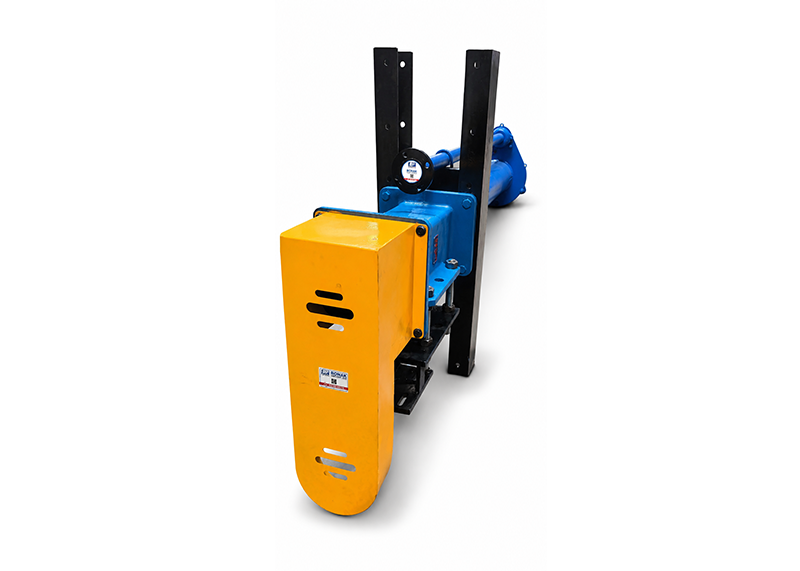

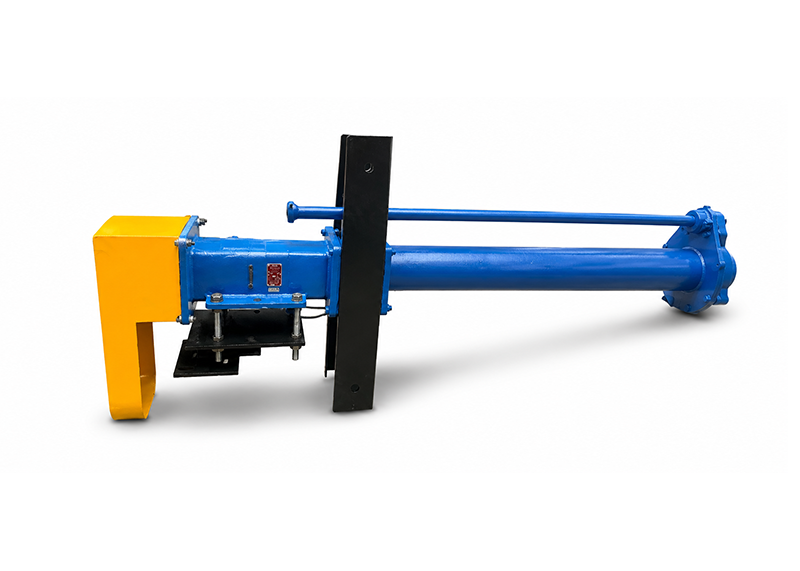

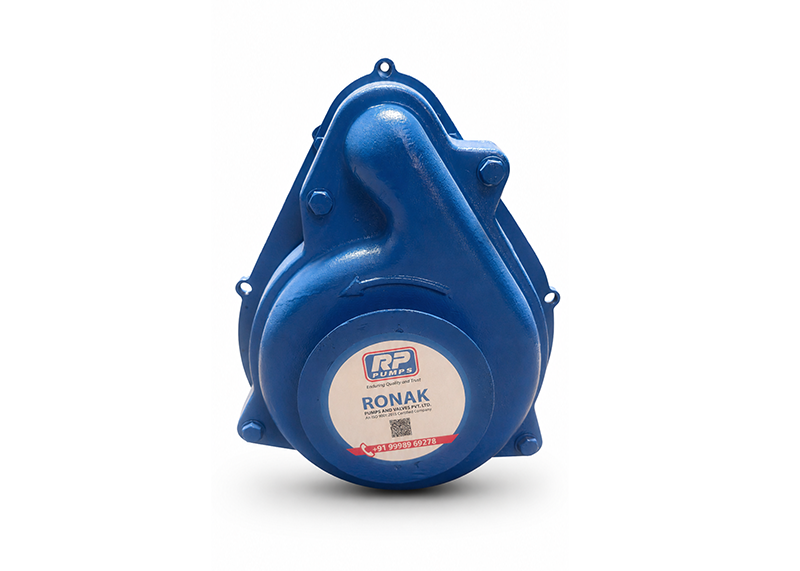

Vertical Slurry Pump(V-G)

Pump			Base and Pump Dimensions				Support Flange			Discharge Flange					Bare Shaft Pump Mass kg STD
Size	Frame	Type	P	X	Y	Z	AA Ø	BB PCD	CC O.D.	DD I.D.	EE No. holes	FF Ø	GG PCD	Metal	Rubber
40	V-GC	GPS	9.5	310	200	485	17	283	127	40	4	16	98	192	179
40	V-GCH	GPS	9.5	310	200	485	17	283	127	40	4	16	98	203	190
65	V-GD	GPS	9.5	435	300	535	21	340	178	65	4	19	140	395	351
65	V-GDH	GPS	9.5	435	300	535	21	340	178	65	4	19	140	427	383
100	V-GE	GPS	9.5	500	400	600	21	396	229	100	8	19	191	694	554
100	V-GEH	GPS	9.5	500	400	600	21	396	229	100	8	19	191	742	602

Easy maintenance through the Back-Pull-Out principle
Single unbalanced / balanced seals to EN 12756 (DIN 24960)
Single and double cartridge seals with seal support system
Quenched shaft sealing
Gland packing
Atex certification
Dry-shaft design, pumped liquid not in contact with the shaft
Robust shaft design
Extended life time
2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
Grease or oil bath lubricated bearings

Graded Grey Cast Iron

Alloy Steel

CF8M (SS 316)

CF3M (SS-316L)

CD4MCU (Duplex Steel)

Ni-Resist

R55

CF3 ( SS 304L )

CD3MM ( SS 2205 )

CE3MN ( SS 2507 )

Carbon Steel(WCB)

CF8 (SS 304)

Bronze

CN7M ( Alloy 20 ) CN7M

SS 904L

Nickle & Ni-Alloys

2-1 nicl

Hasteloy- B/C

Chemical Process Industries

Fertilizer Plants

Bulk Drugs and Pharmaceutical

Heating and Air Conditioning Plants

Sugar Plants

Water Supply

Pulp and Paper

Cement

Agriculture, Textile

Jet Dyeing

Organic and Inorganic Liquids Refineries

Dyes & Intermediates

Effluent Treatment Plants

Cooling Tower

Fire Fighting

Power, Steel

Volatile Liquids

Oil Extraction and Waste

Hot Water
